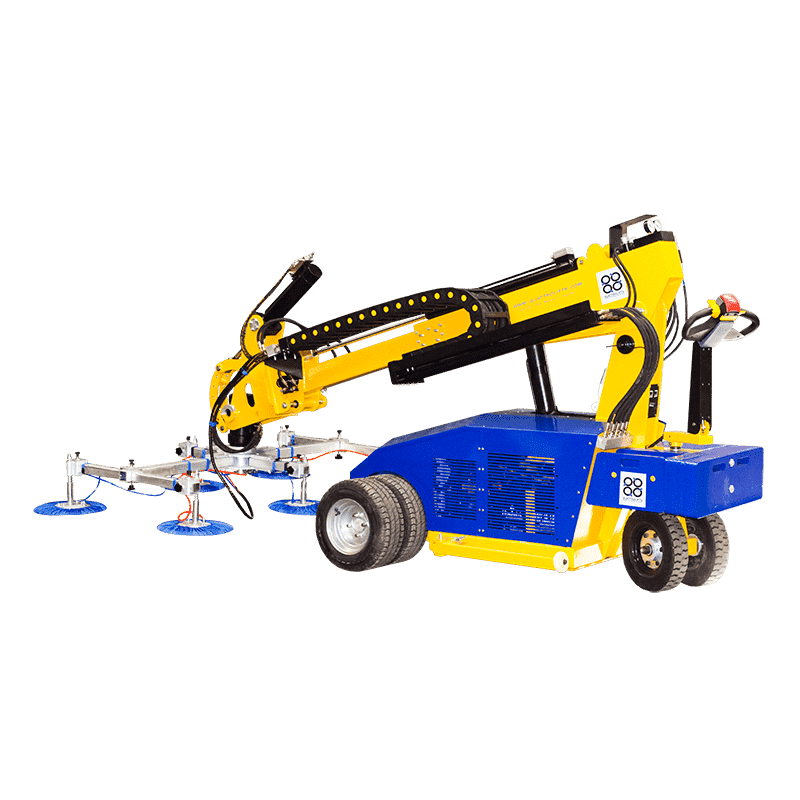

VECTOR 800 OFF ROAD
800 Kg (1800 Lbs)
El Vector 800 está diseñado para permitirles a los vidrieros descargar, transportar e instalar grandes láminas de vidrio con extrema precisión.
- Tiene una capacidad de levantamiento de 800 Kg (1800 Lbs)
- El sistema de vacío doble como una función de seguridad
- Equipo motorizado para instalación de vidrio
- Arietes hidráulicos para mayor durabilidad con precisión
- El control remoto permite un movimiento del vidrio preciso
- Ruedas de 400mm (16”) son ideales para trabajo en obra
- Dial de velocidad hidráulica variable
- Controles remotos tanto inalámbricos como con cable
- Seis grados de movimiento:
- Rotación de 360 grados
- 200mm (8″) desplazamiento lateral
- Pivote lateral de 20 ° – izquierda + derecha (por control remoto) y pivote lateral izquierdo de 90 grados (manual)
- Elevación vertical a 4000 mm (160 ″)
- Rango de inclinación de 100 °
- Extensión hacia adelante de 2000 mm (80 ″) delante de la máquina
También puede manejar:
- Paneles compuestos
- Acero
- Mármol de granito
- Plástica
- Puertas de madera
- Parrilla de Ventosas de vacío para vidrio curvado
- Almohadillas de espuma al vacío para piedra
- Cabrestante elevador eléctrico con gancho
- Gancho de elevación frontal
- Remolque construido expresamente
|
|
|
Grandes ruedas duales delanteras |
 Vector 1800 XR disponible para alcance adicional ( 4400 mm) |
ESPECIFICACIONES
Capacity: 800kg | |
Wired and Wireless (30mtr range) remote controls allow for precise glass movement | |
Sistema hidráulico: 24 v / 1300 vatios | |
Batería: 2x 150 AMP HR | |
Cargador: 110 - 220v x 20 AHr | |
Bombas de vacío: 2 x 24 V, 35 l / min | |
Vacuum cup range - 1450mm - 2050mm | |
Vacuum cup range - 1450mm - 2050mm | |
No-Load Lifting: 18mm/s | |
No-Load Climbing: 8% Gradient | |
SIDE SHIFT - 110mm | |
Hydraulic rotation: 360° | |
Two front 18” puncture proof wheels
(Option for two more) | |
Two rear 18” solid filled wheels | |
Outer wheels can be added for extra stability/traction | |
Backup wired remote control | |
Machine Weight: 1150kg, Counterweights: 550kg |
TESTIMONIOS
Read More
Just a quick note to say what a great piece of equipment. As I am a glazier that has a buggered back and now confined to the shiny seat in the office I reckon if the Nomad was around 25 years ago I would still be glazing commercial. We have just done our first two reglazes both 12.38 laminate 2400 x 3400 aprox 1000 off the ground in a local shop front. Last time it took 3hrs and 6 men to reglaze 1 panel only including scaffold and back pain. This time 4 people and the Nomad, no scaffold and 2 panels took 1 hour including loading the old 12.38 lam on the truck!!!!!! Possibly could have used 3 people but being the first time, are to be sure to be sure! Instant success and the knockers are now believers!! We set a frame approx 2 mtrs square up in the factory and used a piece of 8.38 lam for practice and used 6 people to glaze the panel two times each as a training session before tackling possibly the biggest reglazes in town. Thanks for the prompt service and I will recommend this machine and your business anywhere anytime. Regards extremely happy” Kym Wilson
